Factory Lead Time

6 Weeks

Mount

PCB, Through Hole

Mounting Type

Through Hole

Package / Case

7-SIP Module, 4 Leads

Number of Pins

4

Weight

2.6g

Operating Temperature

-40°C~85°C

Packaging

Tube

Series

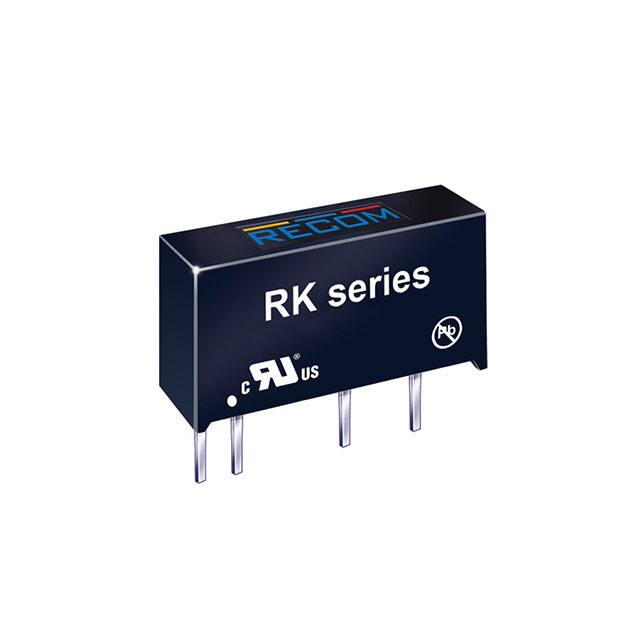

ECONOLINE RK (1W)

Size / Dimension

0.77Lx0.24W x 0.40 H 19.7mmx6.0mmx10.2mm

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

7

ECCN Code

EAR99

Type

Isolated Module

Terminal Finish

NOT APPLICABLE

Applications

ITE (Commercial), Medical

Power Rating

1W

Max Power Dissipation

1W

Terminal Position

SINGLE

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Depth

19.6mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Pin Count

7/4

JESD-30 Code

R-PSIP-T7

Number of Outputs

1

Qualification Status

Not Qualified

Efficiency

78%

Voltage - Isolation

3kV

Output Voltage

5V

Max Output Current

200mA

Input Voltage-Nom

5V

Trim/Adjustable Output

NO

Output Current

200mA

Output Power

1W

Max Output Voltage

5V

Current - Output 1

200mA

Nominal Input Voltage

5V

Max Output Power

1W

Isolation

Isolated

Nominal Output Voltage

5V

Max Input Voltage (DC)

5.5V

Min Input Voltage (DC)

4.5V

Features

SCP

Height

10.2mm

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
